waveshare 2.13inch E-Paper Display HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH and Jetson Nano,250x122 Pixel Black,White Two-Color E-Ink Display SPI Interface Support Partial Refresh

Description

• This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.
• Operating voltage: 3.3V/5V.Interface: SPI.Display color: black, white.Partial refresh time: 0.3s.Full refresh time: 2s.Viewing angle: >170.
• Onboard voltage translator, compatible with 3.3V/5V MCUs.Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).https://www.waveshare.com/2.13inch-e-paper-hat.htm?Amazon

Overview
This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Operating voltage: 3.3V/5V
Interface: SPI
Outline dimension: 65mm 30.2mm
Display size: 23.71mm 48.55mm
Dot pitch: 0.194 0.194
Resolution: 250 122
Display color: black, white
Grey level: 2
Partial refresh time: 0.3s
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: 170

Online Document: n9.cl/uhdb6

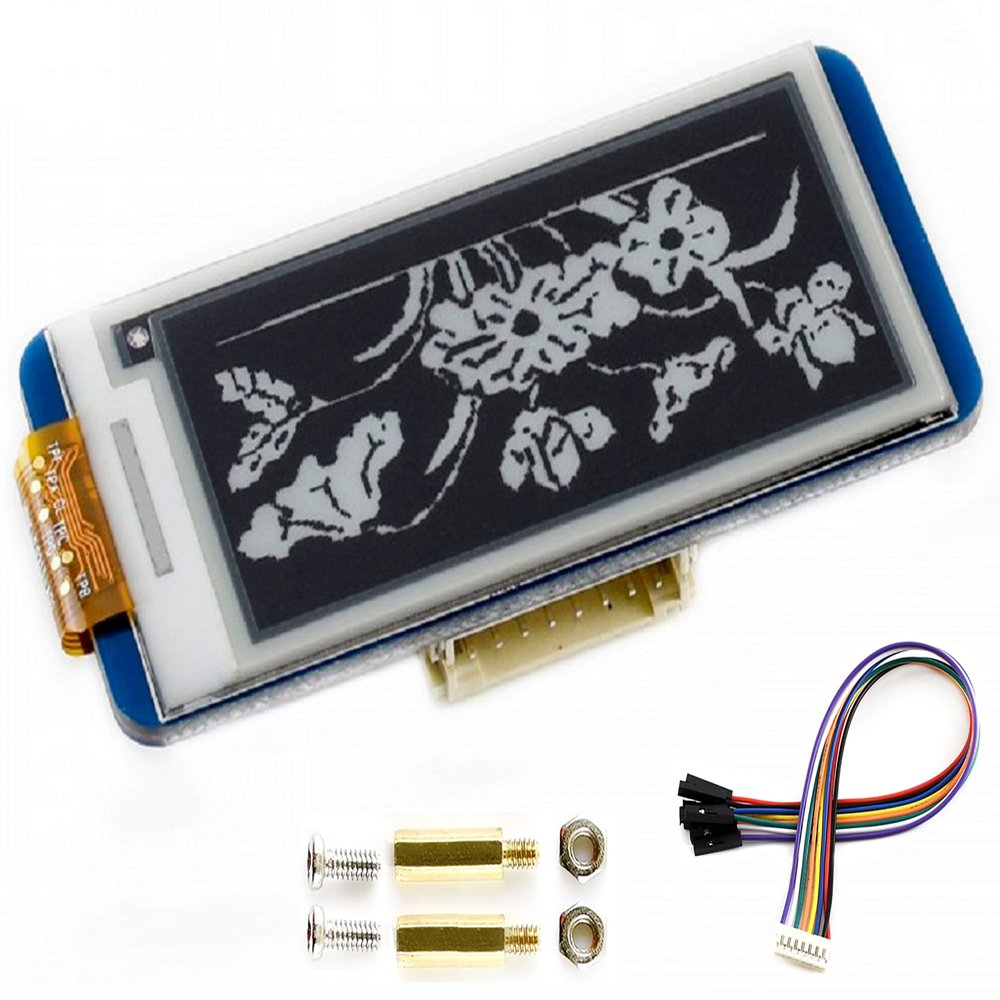

Package Content

1.2.13inch e-Paper HAT x1
2.RPi screws pack (2pcs) x1
3.PH2.0 20cm x1
