VSDISPLAY 21.5" 21.5 inch 1920x1080 1000nit Outdoor IPS LCD Screen Monitor with Audio LVDs Controller Board

Description

• 21.5" high brightness monitor with resolution,Outline Size 487.664(W)279.286(H) 1.29(D) mm,Display Area 476.064(W)267.786(H) mm,Contrast Ratio 3000:1,Transmissive,Signal Interface LVDS (2 ch, 8-bit),30 pins Connector,Backlight WLED,Input Voltage 5V.
• Video input for the driver board : ,Audio Output: Speaker Connector,Pls use in insulated environment.
• Power Supply: 12V DC more than 4A,port size :5.5x2.1mm (Pls prepare the power adapter by yourself) .
• Connecting cables as link pictures,power on ,enter into signal ,with correct resolution 1920s1080 ,the screen can show pictures perfectly.

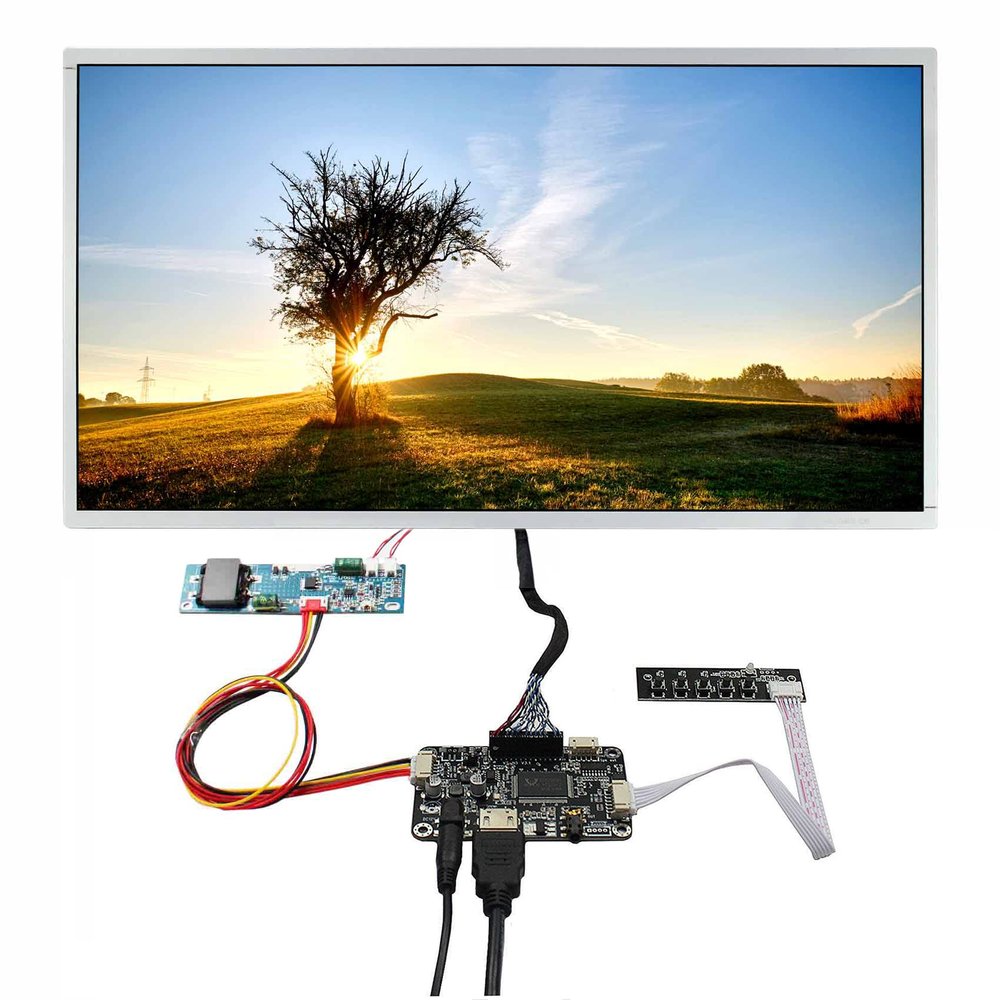

• Packing list:1 Audio LCD Controller Board VS-N5 V3;1 21.5" M215HJJ-1000 1920x1080 LCD Screen;1 LVDS Cable;1 Inverter Board;1 Keyboard With Cable (Please notice that there is no power supply in the package,pls prepare by yourself)

LCD Controller Board:
LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 4A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input:
Audio Input:
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 85mm x 54mm x 14mm

21.5" M215HJJ-1000 1920x1080 LCD Screen:
Display Mode MVA,Normally Black,Transmissive
Resolution:1920(RGB)1080,,102PPI
Outline Size:487.664(W)279.286(H) 1.29(D) mm
Display Area:476.064(W)267.786(H) mm
Brightness:1000 cd/m
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR20)
Signal Interface LVDS (2 ch,8-bit),30 pins Connector
Backlight WLED
Input Voltage 5.0V (Typ.)

Packing list:
1 Audio LCD Controller Board VS-N5 V3
1 21.5" M215HJJ-1000 1920x1080 LCD Screen
1 LVDS Cable
1 Inverter Board
1 Keyboard With Cable
(Please notice that there is no power supply in the package,pls prepare by yourself)
