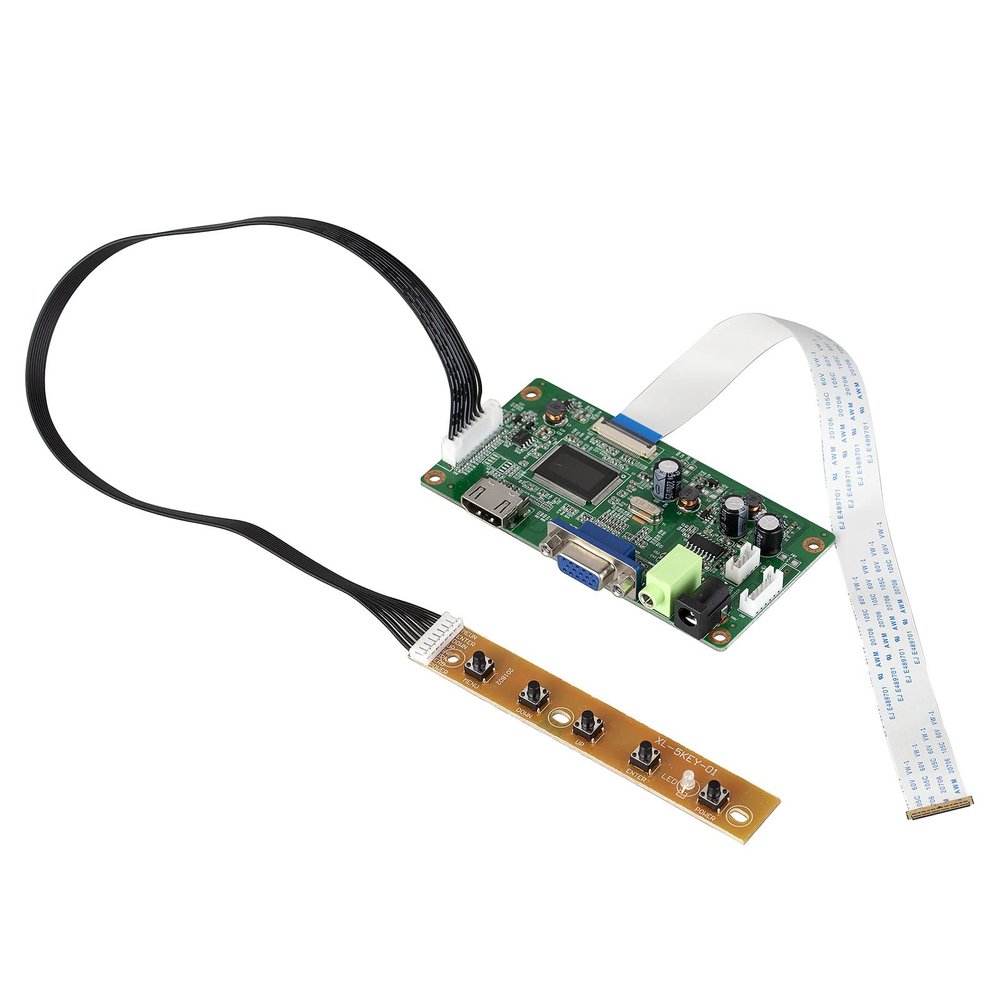

QAREQU LCD Driver Board for LP156WF7 SPA1 SPB2 SPN1, HDMI VGA Video Audio 40-pin eDP Display Controller

Description

• Compatible 15.6-inch LCD panel model: LP156WF7-SPA1, LP156WF7-SPB2, LP156WF7-SPN1, LP156WF7-SPN3, LP156WF7-SPS1
• VGA and HDMI video input (connect either input), resolution up to 1080P (1920 x 1080), when no video input, it is under stand-by mode
• 3.5mm audio input, 4pin speaker header (speaker not included)
• Recommend power supply input is DC 12V 3A (power adapter is not included), connector is 5.5 x 2.1mm, center positive
• No driver or software installation reuqired, connect all cables and plug in power supply at last

This is small size eDP LCD panel controller borad supports LP156WF7 SPA1/ SPB2/ SPN1/ SPN3/ SPS1 up to 1080P. It supports brightness control, plug and play, fast response time.

Important Note, Must Read:
-NOT support touch screen function
- LVDS cable is 30pin to 40pin, 40pin side connecy to LCD panel
- This board uses 12V 3A power supply which is NOT included
- DC connector is 5.5 x 2.1mm, center positive
- If you have doubts in operation, please CONTACT US

Packing List (bulk pack):
- 1 x Driver board
- 1 x eDP cable (30pin to 40pin)
- 1 x 5-key menu panel

Features
- Compatibility: LP156WF7 SPA1/ SPB2/ SPN1/ SPN3/ SPS1 only, not for other models
- Support resolution up to 1920 x 1080 (1080P)
- Support eDP voltage 3.3V only, voltage is FIXED
- VGA or HDMI video input, 3.5mm audio input, 4pin speaker header (speaker not included)
- Support control of contrast, brightness, digital volume... etc
- Board size: 10.6 x 5.5cm (4.17 x 2.16 inch)
