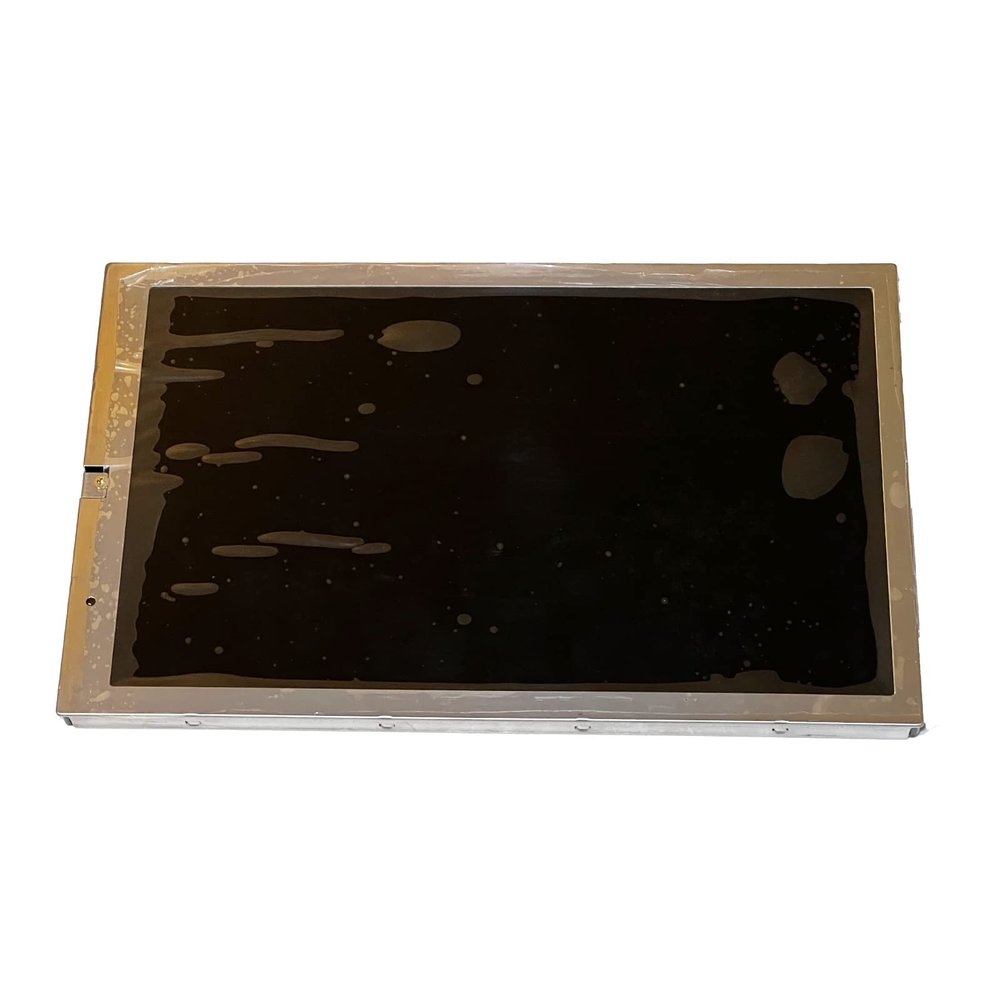

NL8048BC24-01 9 inches LCD Screen Display Panel TFT Color LCD Module

Description

• High luminance, High contrast
• Wide viewing angle, Wide temperature range
• LVDS interface, Reversible-scan direction
• Selectable 8bit or 6bit digital signals for data of RGB. Edge light type (without inverter). Replaceable lamp for backlight.
• Acquisition product for UL60950-1/CSA-C22.2 No.60950-1-03 (File number: E170632). Compliance with the European RoHS directive (2002/95/EC)

Color LCD module NL8048BC24-01 is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated into best form for active matrix system by a signal processing circuit, and sent to the driver LSIs which drive the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly when it is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array of red, green, and blue dots.
