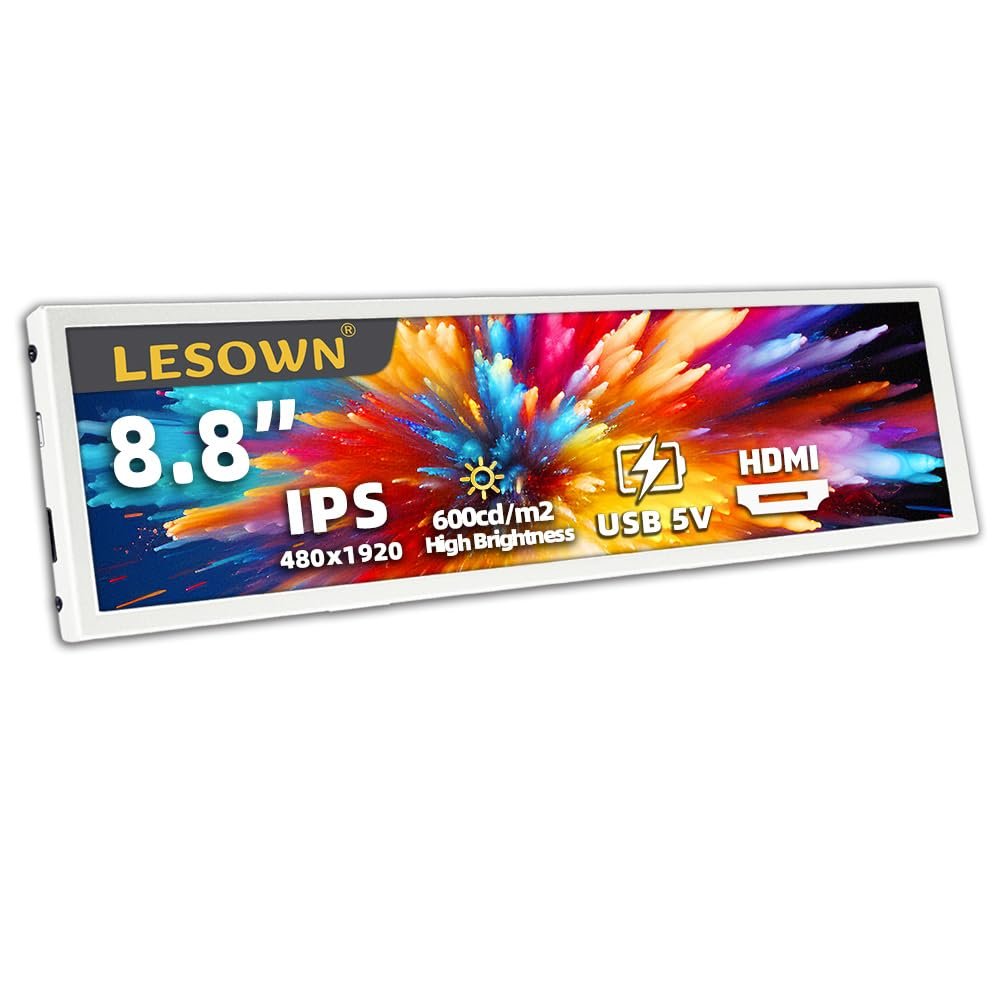

LESOWN 8.8 inch Stretched Bar LCD Temp CPU GPU Data Monitor 1920x480 IPS Wide Screen Portable Screen for PC Laptop Aida 64 Windows Secondary Display - White

Description

• 600cd/m2 High Brightness Adjustable600cd/m2 high brightness screen, and which is adjustable, whether you are in a dark or bright place can let you see the screen content clearly and brightly, which can make you have a better experience.
• Secondary Screen for Chassis Temperature Monitoring8.8-inch high-definition LCD screen, real-time display of the internal temperature of the chassis, data, can be customised to display the time, system status and other information to reduce distractions, so you can focus on your work.
• Easy to Use & Plug & PlayPlug and play for Windows and Mac OS systems, this product is driver free to use, comes with 1x usb and 1x mini HDMI to HDMI cable. HDMI supports data and signal transmission, one USB for power supply. Drive free makes debugging so much easier. Please note: Some mac OS systems may have compatibility issues.
• IPS Technology & Full Viewing AngleThe LESOWN 8.8 inch bar portable display features an LCD panel with ultra-high definition 480x1920 resolution, 800:1 contrast ratio, uniform colors, and full viewing angles to provide you with a wider viewing experience.
• Wide Compatibility Supports RPi 4/3/2/ B B+. Compatible with Windows 7/8/10. Windows system support plug and play, no program or software is required. Adjustable horizontal and vertical screen display in display setting of Windows system.
• Portable & Supports Back-mounted RPi The 8.8 inch small monitor lightweight is 0.38lbs, the external dimensions are 2.56x9.13x0.49inches. Supports back-mounted RPi; White metal appearance.

Specifications:
Model: P88W
Screen Size: 8.8inch
Screen Type: LCD
Panel Type: IPS
Appearance Color:White
Resolution: 480x1920
Touch Function: No
Viewing Angle: Full View Angle
Outline Dimension: 6523212.5(mm)
Display Area: 54.72(W)218.88(H)mm
Color Gamut: 50% NTSC
Display Colors: 16.7M(8-bit)
Refresh Rate: 60Hz
Response Time: 30 (Typ.)(Tr+Td) ms
Contrast Ratio: 800:1
Surface Luminance: 600cd/m2
Power Supply: microUSB Port
Input Voltage: microUSB 5V
Interface: 1miniHDMI, 1microUSB
Operation Temperature: -10~60

Connect to computer:
Connect one end of the included HDMI cable to the computer and the other end to the monitor.
If the monitor does not have a touch function, the USB cable only provides power for the monitor, just connect it to a computer or a USB adapter (current 0.3A).
If the monitor has a touch function, the USB cable needs to be directly connected to the USB interface with data transmission function of the Windows system host. At this time, the USB cable transmits power and touch signals.

Please note:
1.Please connect the HDMI cable directly to the native HDMI port of the computer, because the resolution of the display screen is special, not all docking station support 4801920 resolution output.

2.Please note: Some mac OS systems may have compatibility issues.

Connect to RPi:
When used on RPi, you need to modify the "config.txt"
Add the following code to the config.txt file:
max_usb_current=1
hdmi_group=2
hdmi_mode=87
hdmi_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3
Note: If it is RPi 4, you also need to comment out dtoverlay=vc4-fkms-V3D.

What's included?
1x 8.8inch Portable Monitor
1x mini-HDMI to HDMI Cable
1x USB-A to USB-C Cable
