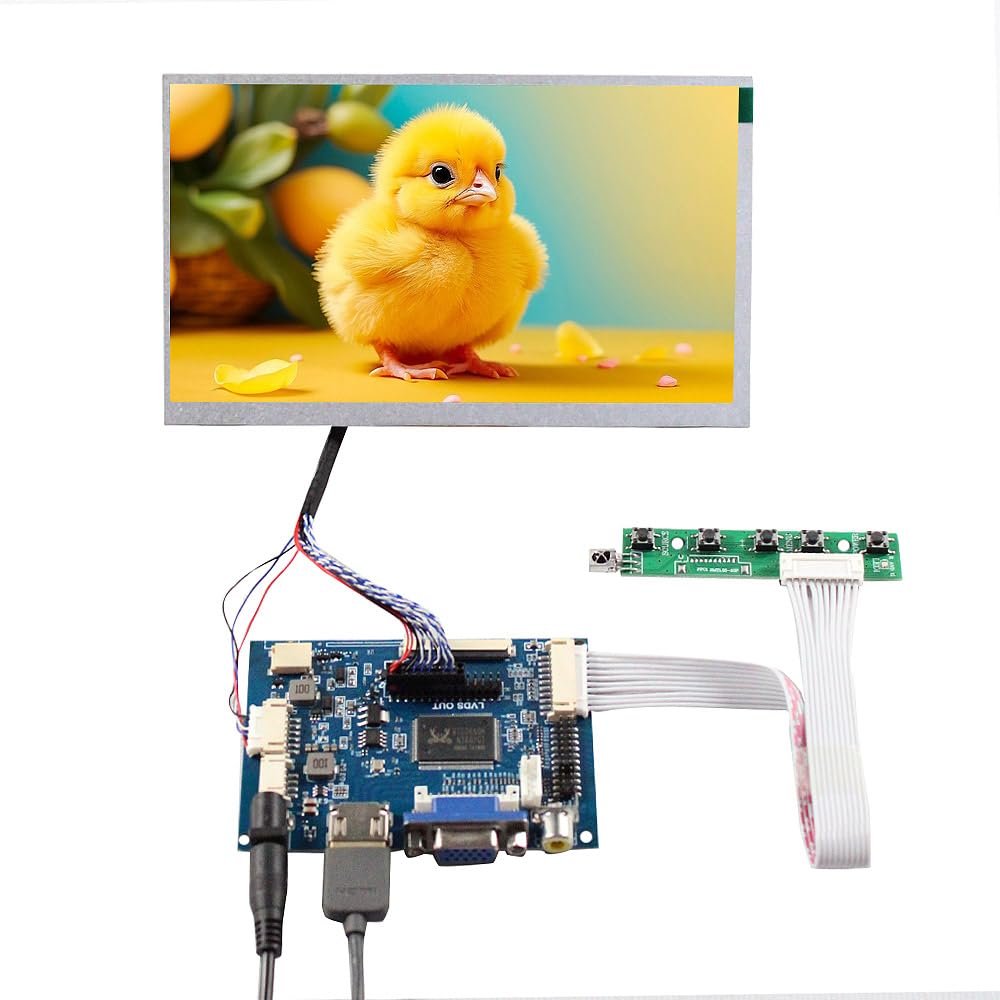

FanyiTek 7 inch 1024x600 1000nit TFT LCD Screen 20 pins and VGA 2AV LVDS Controller Board VS-TY2662V1-99

Description

• Screen Advantage7 inch 1000nit high brightness TFT LCD screen ,with 1024x600 resolution ,>Outline Size 164.9 1003.5mm (HVD),Display Area 154.21585.92mm (HV),Contrast Ratio 600:1 ,Signal Interface LVDS (1ch 8bit) 20Pin,Backlight WLED,Input Voltage 3.3V.
• LCD Driver BoardVideo Input: VGA AV1 AV2,Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V,Pls use it in insulated environment.
• Input Power12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.
• Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
• Packing lists1 VGA+2AV LCD Controller Board VS-TY2662-V1,1 7" VS-JH070BO20GK-1000 1024x600 1000nit Brightness LCD Screen,1 LVDS Cable,1 Keyboard With Cable

LCD Controller Board:
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm
7" VS-JH070BO20GK-1000 1024x600 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1024(RGB)600
Outline Size 164.9 1003.5mm (HVD)
Display Area 154.21585.92mm (HV)
Brightness 1000 cd/m (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 85/85/85/65 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1ch 8bit) 20Pin
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1 VGA+2AV LCD Controller Board VS-TY2662-V1
1 7" VS-JH070BO20GK-1000 1024x600 1000nit Brightness LCD Screen
1 LVDS Cable
1 Keyboard With Cable
