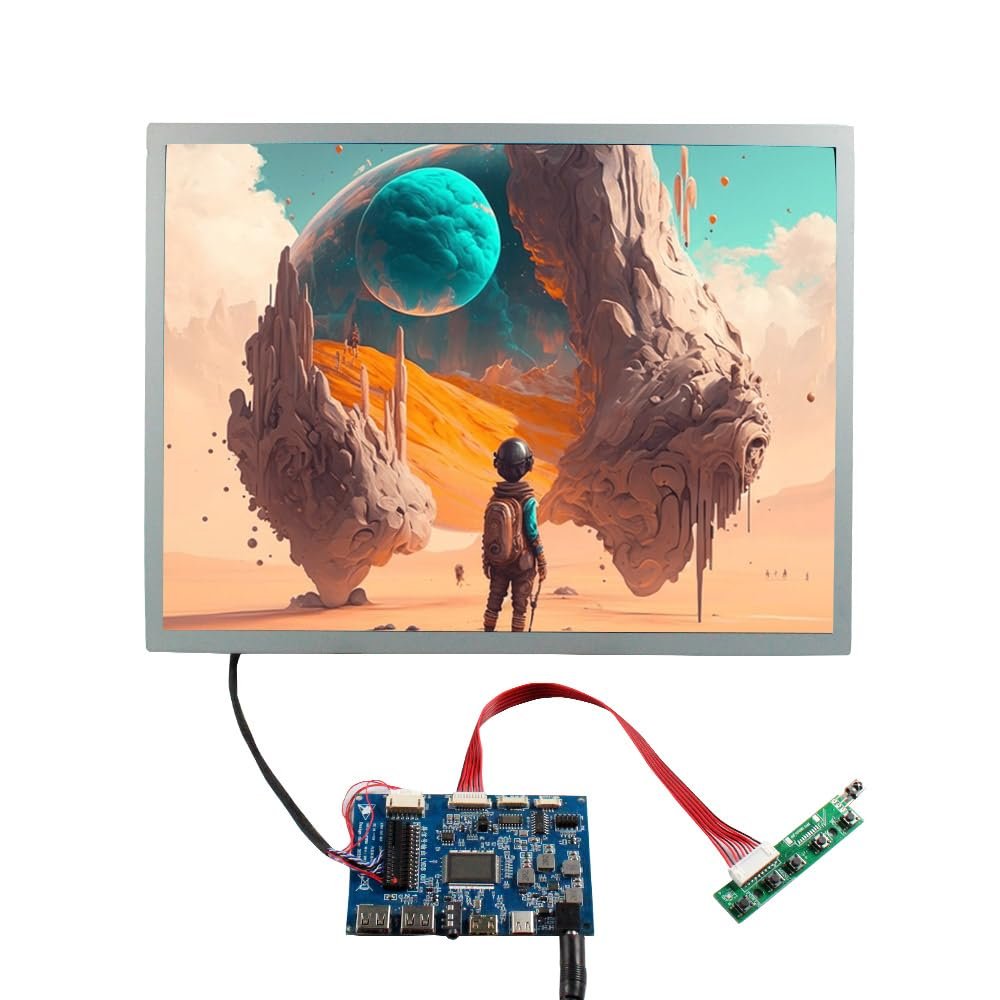

FanyiTek 15 inch 1024x768 4:3 300nit IPS LCD Screen and Type C USB LVDs Controller Board 30pin

Description

• Display Details 15" LQ150X1LW94 1024X768 IPS LCD display ,Outline Size 326.5 253.510(HVD)mm,Display Area 304.1 228.1 (HV) mm,Brightness 300 cd/m,Contrast Ratio 1500:1 ,Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector,Backlight WLED.
• LCD driver BoardVideo Input: Type-C 2xUSB(keyboard mouse),Audio Input: Type-C,Audio Output: Speaker Connector .Pls ensure that the board is used in an insulated environment to avoid short circuits.
• Input Power Supply12Vdc More than 2A,port size :5.5x2.1mm, (power adapter not included in package ,should be prepared by yourself) .
• Plug & playConnecting cables and ports as link pictures ,power on ,then enter in signal cable,with correct resolution,the screen can work well .
• Packing lists 1 Type-C USB LCD Controller Board VS-TY2660H-V862,1 15inch LQ150X1LW94 1024X768 LCD Screen,1 LVDS Cable,1 Keyboard With Cable

LCD Controller Board:
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model 2x2W
Video Input: Type-C 2xUSB(keyboard mouse)
Audio Input: Type-C
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 99.5mm x65.8mm x 11mm

15" LQ150X1LW94 1024X768 LCD Screen:
Display Mode ASV, Normally Black, Transmissive
Resolution 1024(RGB)768
Outline Size 326.5 253.510(HVD)
Display Area 304.1 228.1 (HV)
Brightness 300 cd/m (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

Packing list :
1 Type-C USB LCD Controller Board VS-TY2660H-V862
1 15inch LQ150X1LW94 1024X768 LCD Screen
1 LVDS Cable
1 Keyboard With Cable
