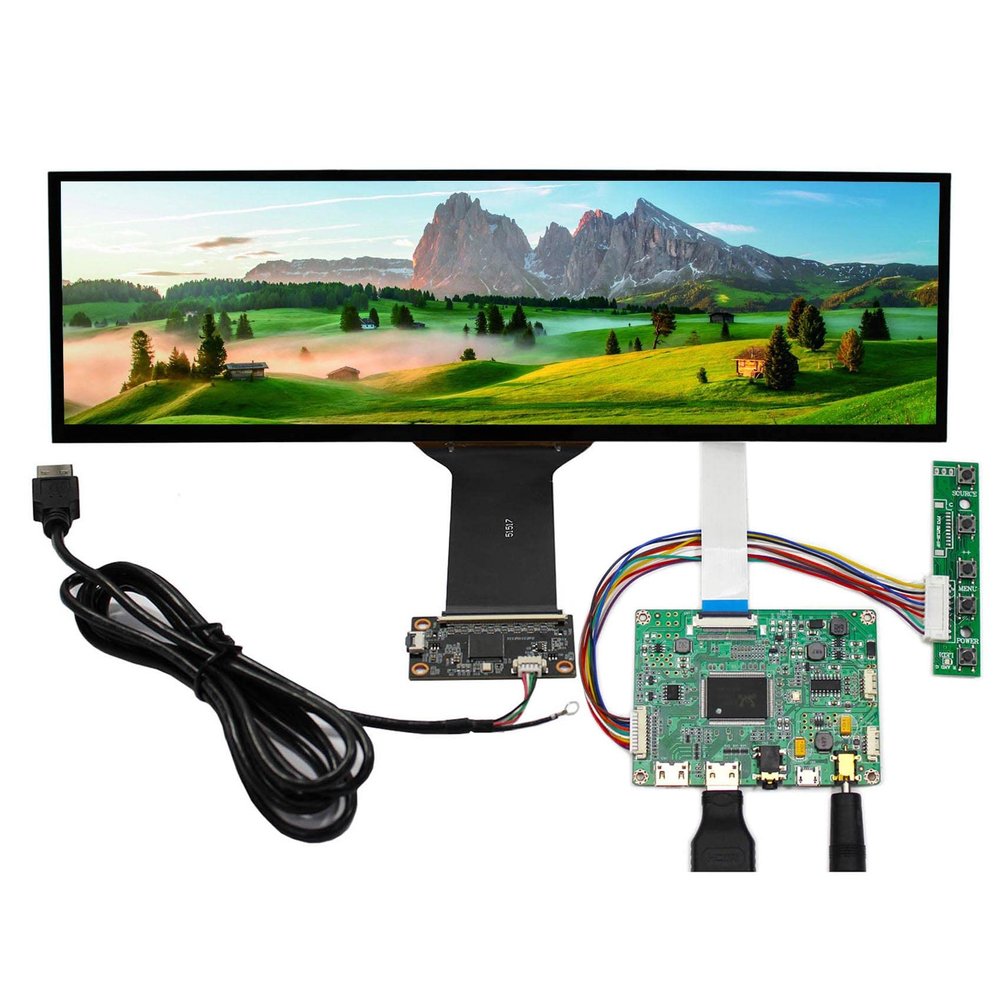

FanyiTek 12.6 inch NV126B5M-N41 1920x515 IPS Touchscreen Monitor and 2Micro USB LCD Controller Board

Description

• 12.3" HSD123KPW2-D10 1920X720 LCD Screen: Resolution 1920RGB)720 Outline Size 308.1 13015.6 (HVD) Display Area 292.032 109.512 (HV) Brightness 850 cd/m (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
• LCD Board Work for LVDS Interface LCD Screen
• Video Input: Audio Input: Audio Output: Speaker earphone
• Recommend Power Adapter Spec. Input Power Adapter: 12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug...) Come In Standby Model When Not Input Standby Model <1W
• Packing list: 1Audio LCD Controller Board 112.3inch HSD123KPW1 1920X720 LCD Screen 1 Inverter Board 1 LVDS Cable 1 Keyboard With Cable (Please Note There is No Power Adapter in The Packing List.)

LCD Controller Board:
Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 82mm x 60mm x 5mm
12.6" NV126B5M-N41 1920X515 LCD Screen:
Display New Mode ADS, Normally Black, Transmissive
Resolution 1920RGB)515
Outline Size 315.6194.025.3(HVD)
Display Area 309.3182.97 (HV)
Brightness 250 cd/m (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR10) [Left / Right / Up / Down]
Interface eDP (2 Lanes), Connector, 40pins
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list:
1 2 Mini LCD Controller VS-RTD2556HM-V1
1 12.6inch NV126B5M-N41 1920X515 IPS Touch Screen
1 Cable
1 Keyboard With Cable
